Advantages and Characteristics
● Good long-term stability ● Resistance to temperature shock
● High temperature measurement accuracy ● Small size
● Fast response time ● Low self heating effect
● Good anti vibration performance ● Support user customization
Compliant with DIN EN 60751 standard: 2008, GB/T 30121-2013
Technical Parameter
Nominal resistance: 1000 Ω
Temperature coefficient (TCR): 3851ppm/℃
Working temperature range: -50 ℃~+150 ℃
Long term stability: Constant temperature of 500 degrees for 1000 hours, Ro resistance value change less than 0.03%
Insulation resistance: Room temperature ≥ 100M Ω
Thermal response time for boiling water: boiling water τ 0.5 ≤ 0.07s, τ 0.632 ≤ 0.1s
Airflow (v=2m/s): τ 0.5 ≤ 2.5s, τ 0.632 ≤ 4s
Recommended working electricity: 0.1-0.3mA
Flow resistance: 40g
Welding performance: SMT soldering, etc
Packaging: Plastic vacuum packaging

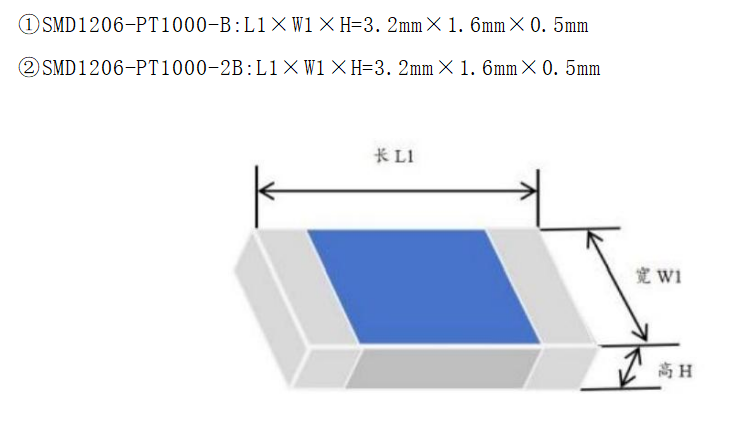

element size：
